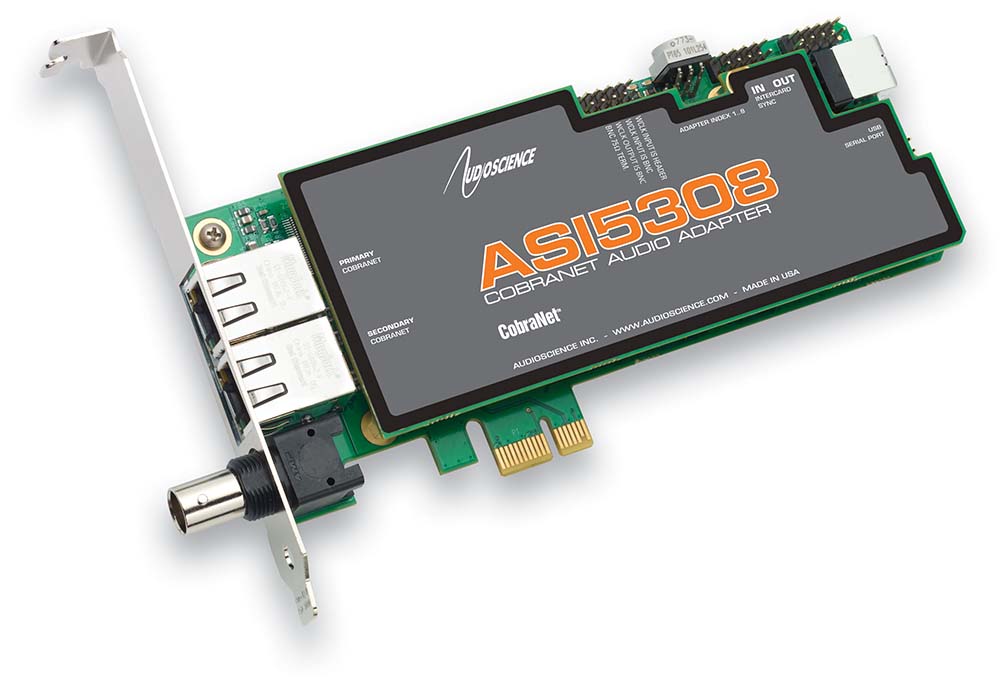

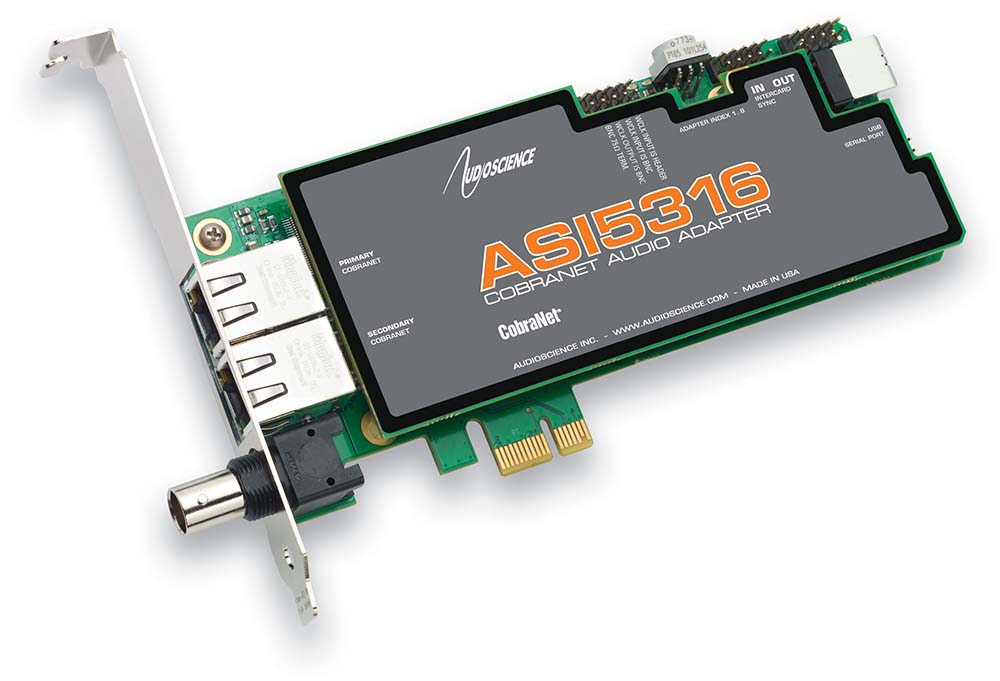

ASI5308, ASI5316, and ASI6316 PCI Express CobraNet Sound Cards

The ASI5308, ASI5316, and ASI6316 are professional PCI Express CobraNet sound cards designed for use in the installed sound and entertainment markets.

Using Cirrus Logic's CobraNet technology for streaming audio over Ethernet, the ASI5308 provides 8 channels of CobraNet receive and transmit and the ASI5316/ASI6316 provides 16 channels of CobraNet receive and transmit. They can be connected to any CobraNet-compliant device and have dual-redundant CobraNet interfaces.

The ASI5308, ASI5316, and ASI6316 are based on the TMS320C6713 VLIW floating point DSP connected to a high-speed bus-master PCI Express interface.

For the ASI6316 AudioScience's MRX technology allows up to 16 streams of different formats and sample rates to be played, recorded, and mixed over CobraNet.

For the ASI5308/ASI5316, a choice of 8, 16, 24, and 32bit PCM is available on all streams. For the ASI6316, a choice of PCM, MP3, or MPEG layer 2 compression is available on all streams.

AudioScience provides ASIControl, an application that allows CobraNet routing connections to be set up between the ASI5308, ASI5316, and ASI6316 and any other compliant CobraNet device on the network. Alternatively, third party CobraNet design and management software may be used.

Contact our Sales Team!
ASI5316ASI6316
Features
Available operating modes

ASI5308 Mode-1
ASI5308 Mono mode
ASI5308 Low latency mode

ASI5316 Mode-1
ASI5316 Mode-2
ASI5316 16-Play mode
ASI5316 Mono mode
ASI5316 Low latency mode

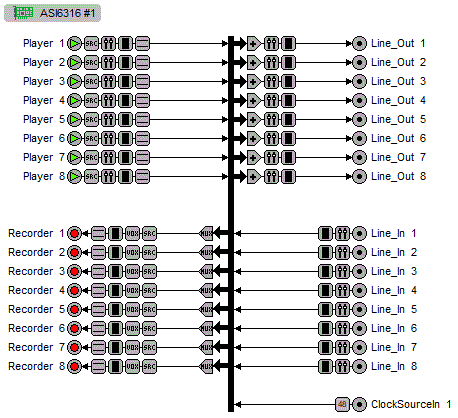

ASI6316 Mode-1
ASI6316 Mode-2
ASI6316 16-Play mode
ASI6316 Mono mode
ASI6316 Low latency mode

Documentation Downloads
ASI5308, ASI5316, ASI6316 Datasheet Windows Drivers
CobraNet sound cards quick start guide Linux HPI and ALSA Drivers
