CobraNet is a technology from Cirrus Logic that provides distribution of isochronous digital audio, control and monitoring data over Ethernet. CobraNet operates at the Data Link Layer also referred to as OSI Layer 2 or MAC layer.  Note that in most cases CobraNet can coexist with regular data on an Ethernet network, because CobraNet packets are just regular Ethernet packets that have a CobraNet identifier.

To learn more about CobraNet, see Cirrus Logic's CobraNet website and the Wikipedia CobraNet page.

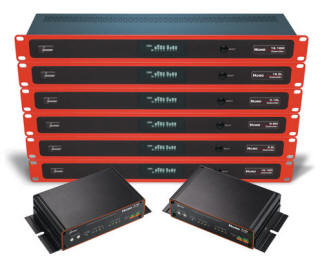

AudioScience has developed the ASI6416, ASI54xx, ASI6316, and ASI53xx CobraNet sound cards as well as the ASI2416 1RU and the ASI2202 CobraNet interfaces.  The ASI6416, ASI54xx, and ASI6316 look just like regular AudioScience sound cards to software applications, allowing multiple streams of audio to be played and recorded to/from the network.  The ASI2416 allows audio equipment to be interfaced to the CobraNet network.  It can be configured with analog and/or AES/EBU I/O as well as GPIO for control and monitoring.

ASIControl is a software application that can be used to set up the routing of audio streams between any CobraNet device on the network (not just AudioScience products).

Click here for a Quick Start guide to setting up CobraNet cards.


 ASI2400 Series CobraNet Interface

 Model Sample Rate  CobraNet I/O Analog
Inputs*
Analog
Outputs*

AES/EBU
Inputs

AES/EBU
Outputs
Other
ASI2416 48kHz 16/16 up to 16 up to 16

up to 16

up to 16 1RU rackmount
120/220VAC power supply

 ASI2200 Series CobraNet Interface

 Model Sample Rate  CobraNet I/O Analog
Inputs*
Analog
Outputs*

AES/EBU
Inputs

AES/EBU
Outputs
Other
ASI2202 48kHz 2/2 2 2

-

- Line in microphone levels
Phantom power on inputs
User-selectable input levels

 CobraNet Sound Cards - PCI Express (PCIe)

 Model Sample Rate Formats CobraNet I/O Play
Streams
Record
Streams

Other

ASI5308 Multi (MRX)
8-96kHz
PCM 8,16,24,32 8/8 (mono) 8 8

MRX multi rate mixing

ASI5316 Multi (MRX)
8-96kHz
PCM 8,16,24,32 16/16 (mono) 16 16

MRX multi rate mixing

ASI6316 Multi (MRX)
8-96kHz
MP3, MP2
PCM 8,16,24,32
16/16 (mono) 16 16

Word clock sync input/output *
Intercard Sync *
Serial bridge *
TSX time scaling
MRX multi rate mixing

* Available in driver 4.06 and later.

 CobraNet Sound Cards - PCI

 Model Sample Rate Formats CobraNet I/O Play
Streams
Record
Streams

Other

ASI5408 Multi (MRX)
8-96kHz
PCM 8,16,24,32 8/8 (mono) 8 8

MRX multi rate mixing

ASI5416 Multi (MRX)
8-96kHz
PCM 8,16,24,32 16/16 (mono) 16 16

MRX multi rate mixing

ASI6416 Multi (MRX)
8-96kHz
MP3, MP2
PCM 8,16,24,32
16/16 (mono) 16 16

TSX time scaling
MRX multi rate mixing
