Dante® sound cards

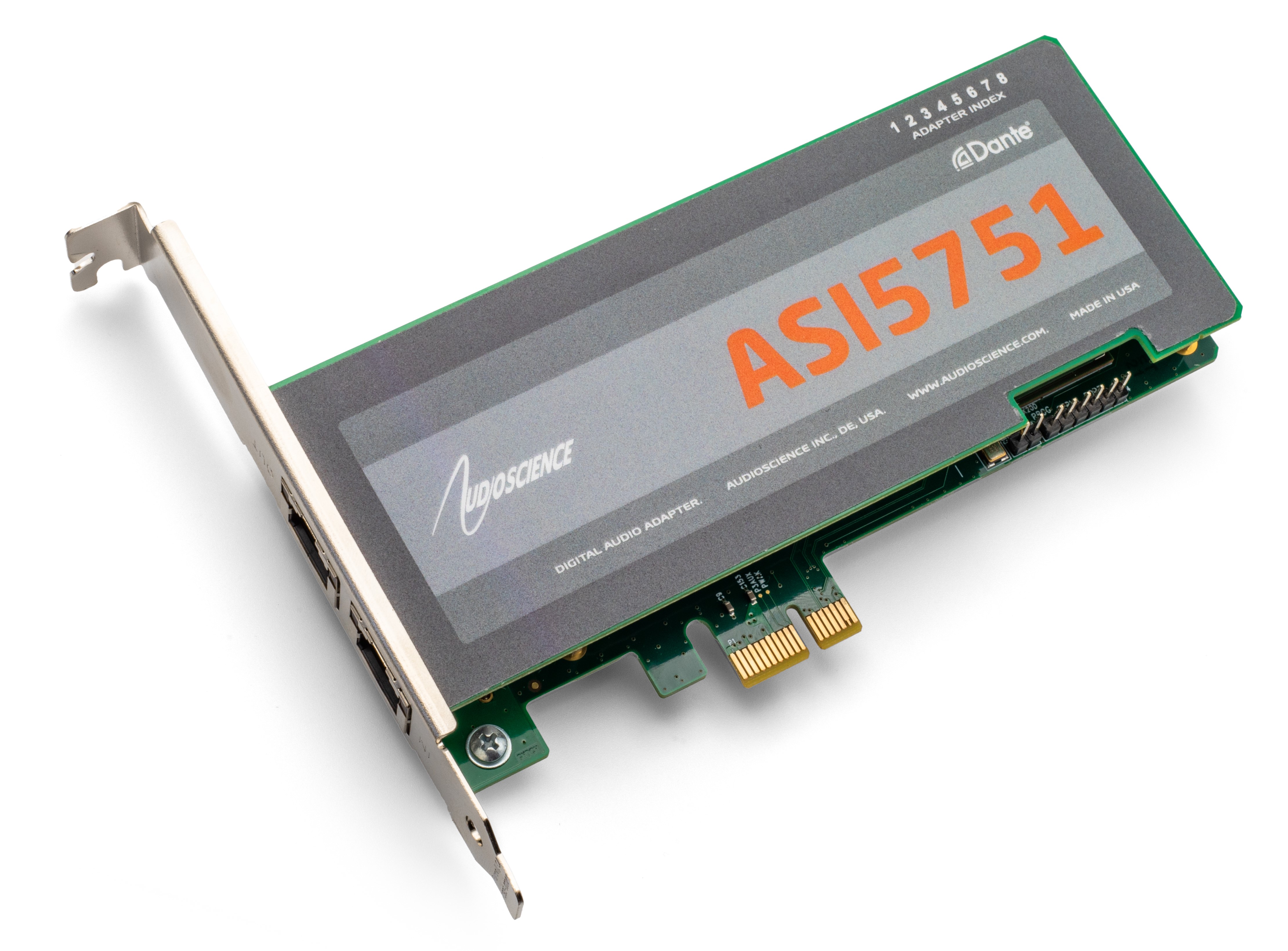

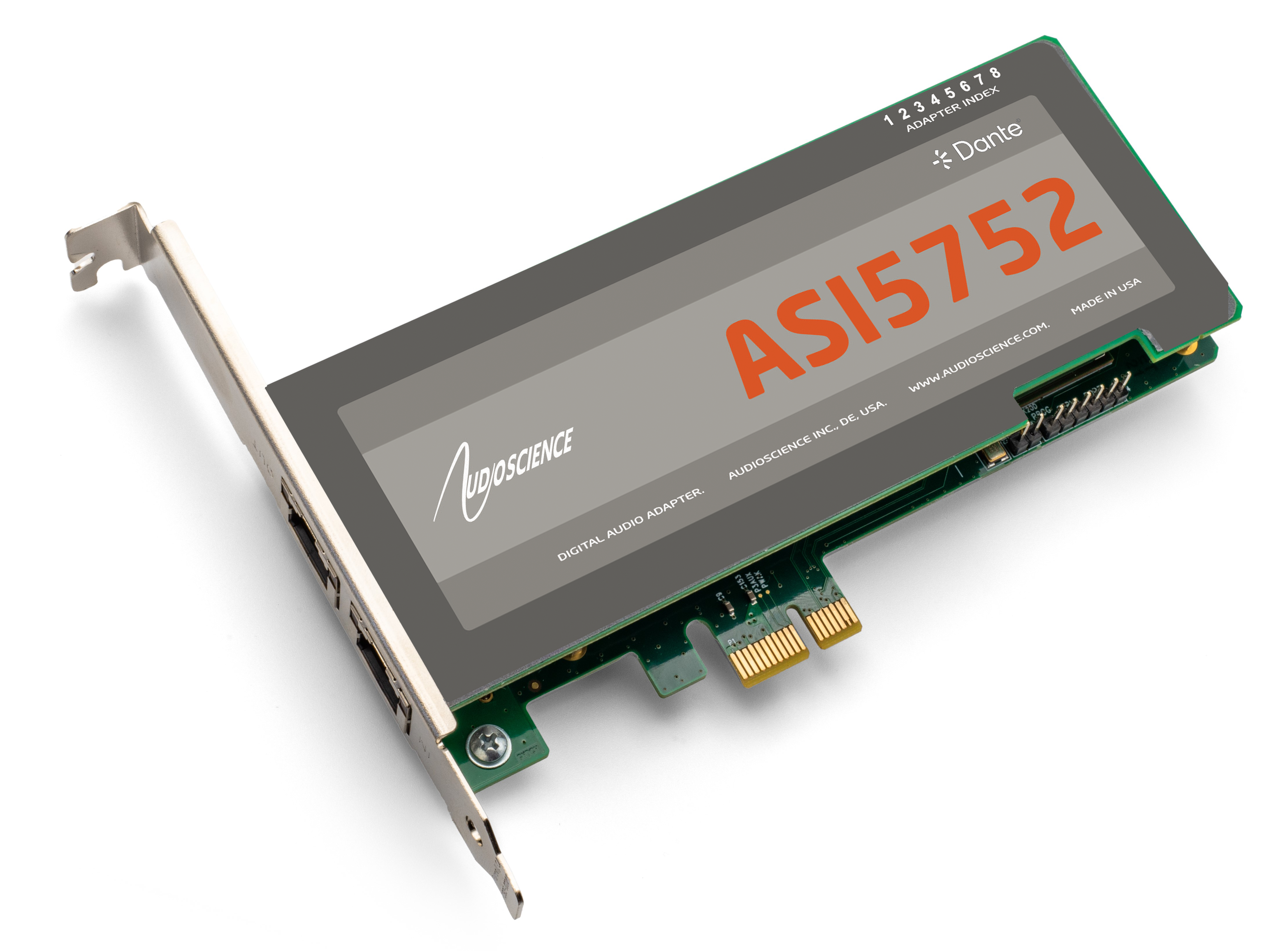

The ASI5751 and ASI5752 provides Dante inputs and outputs on Gigabit Ethernet in a small form factor half height PCIe card. They support both Windows and Linux operating systems with the ability to have up to 8 cards in 1 system to maximize capacity.

The ASI5751 provides either 16 Play/Record Stereo or 32 Play/Record Mono streams of PCM playback and record at 32-bit PCM precision with a sample rate of 48kHz. The ASI5751 also features advanced Mixing and Routing: AudioScience’s unique 'anything to anywhere' mixing and routing capabilities offer unparalleled flexibility and control, making it ideal for intricate audio workflows.

The ASI5752 is designed for low-latency applications and routes 64 channels of Dante input and output to configurable WDM devices that can be set as 1,2,4 or 8 channels, giving you a flexible design and increased capacity for demanding applications while streamlining the signal flow for simpler operation.

For complex or simple audio setups, the ASI5751 and ASI5752 provide unparalleled flexibility and performance. This makes them exceptional choices for broadcast, installation, and live sound applications.

Contact Sales!
(Need tech support?)
ASI5751
ASI5752
Features
Available operating modes

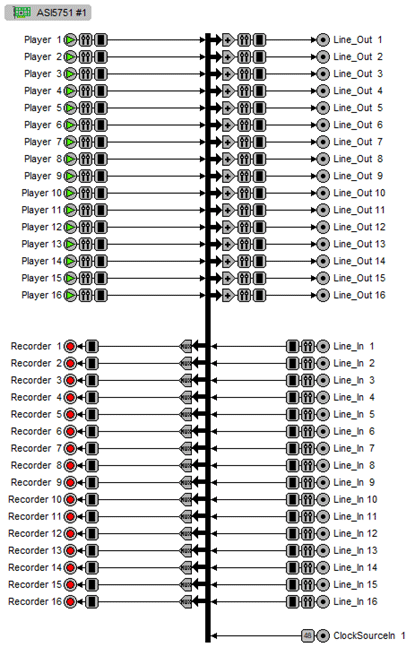

ASI5751 16 Play mode
ASI5751 16 Play mode

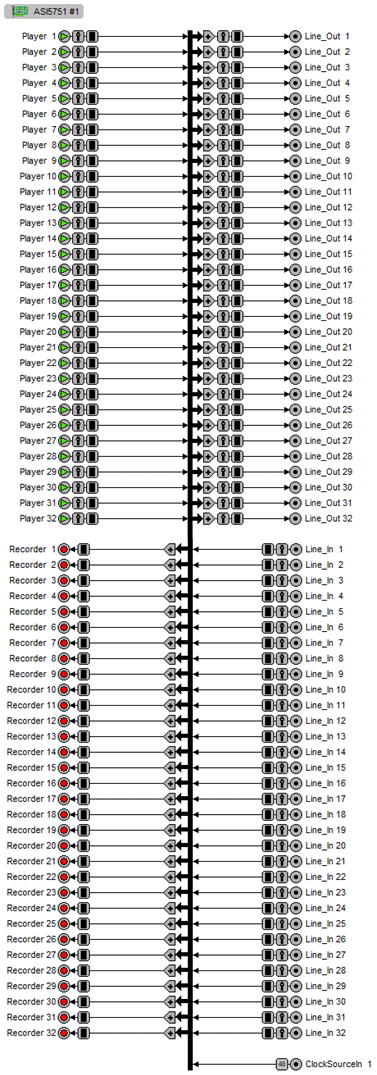

ASI5751 Mono mode
ASI5751 Mono mode

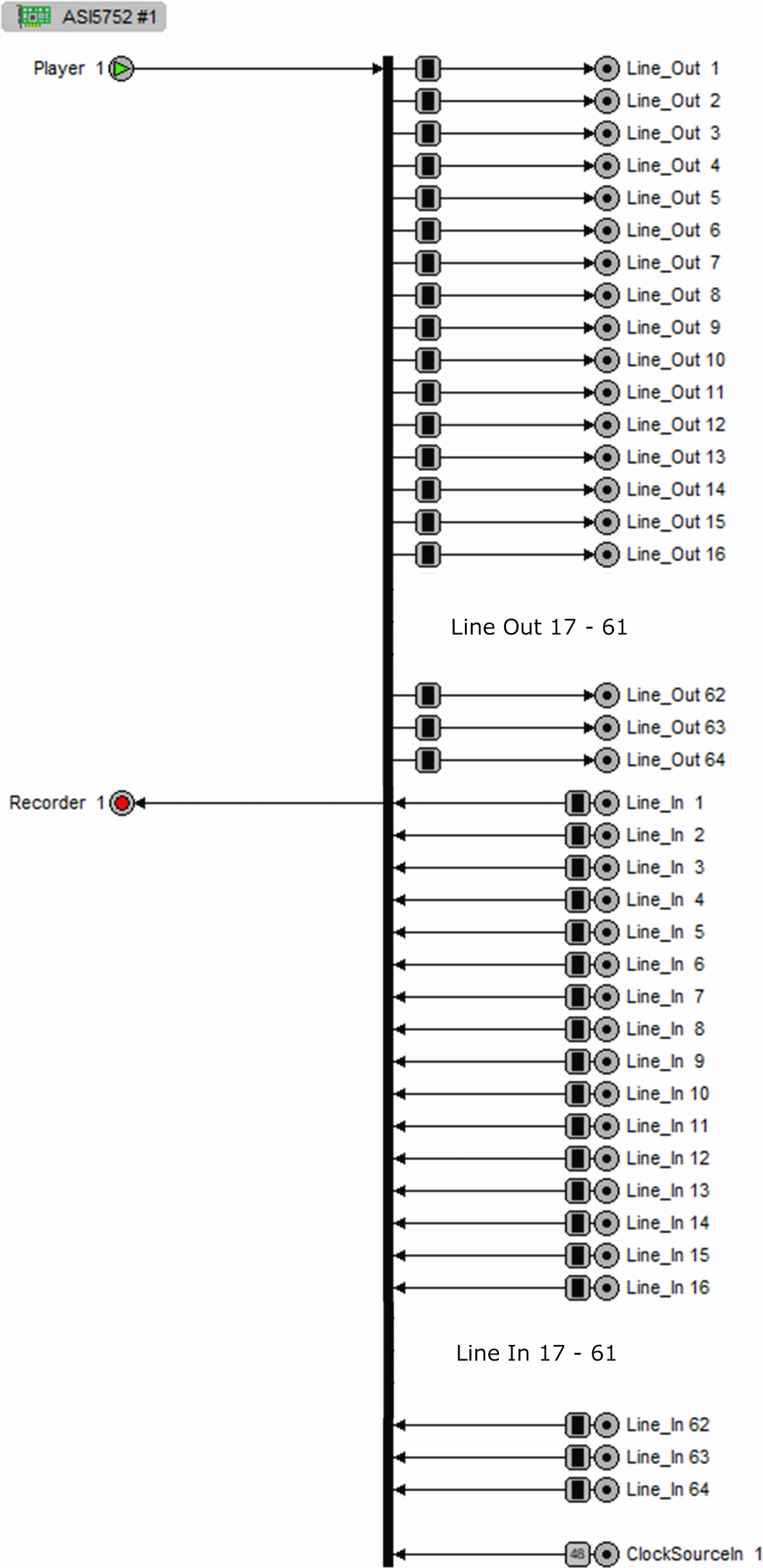

ASI5752 Low Latency mode
ASI5752 Low Latency mode

Documentation Downloads
ASI575x Datasheet Windows Drivers
(ASI5751 driver 4.36.00 or higher required)
(ASI5752 driver 5.02.00 or higher required)
Linux HPI and ALSA Drivers
Available now through our Distributors and VARs!
