Tuner Controls

Controls

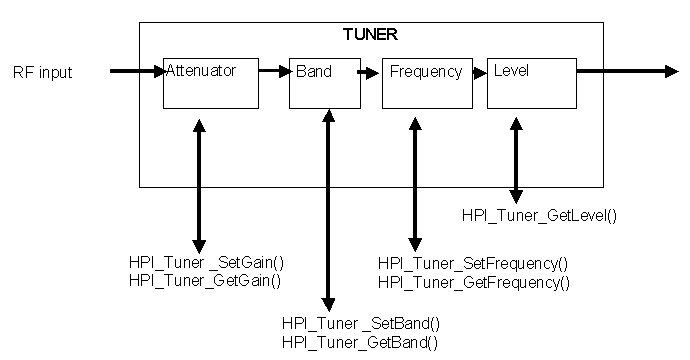

The tuner control sets the band and frequency of a tuner, and measures the RF level. More...

Enumerations

enum  HPI_TUNER_BAND {
  HPI_TUNER_BAND_AM = 1, HPI_TUNER_BAND_FM = 2, HPI_TUNER_BAND_TV_NTSC_M = 3 , HPI_TUNER_BAND_FM_STEREO = 4,
  HPI_TUNER_BAND_AUX = 5, HPI_TUNER_BAND_TV_PAL_BG = 6, HPI_TUNER_BAND_TV_PAL_I = 7, HPI_TUNER_BAND_TV_PAL_DK = 8,
  HPI_TUNER_BAND_TV_SECAM_L = 9 , HPI_TUNER_BAND_LAST = 10
}


Tuner bands.

More...
enum  HPI_TUNER_MODES { HPI_TUNER_MODE_RSS = 1, HPI_TUNER_MODE_RDS = 2 }


Tuner mode attributes.

More...
enum  HPI_TUNER_MODE_VALUES {
  HPI_TUNER_MODE_RSS_DISABLE = 0, HPI_TUNER_MODE_RSS_ENABLE = 1, HPI_TUNER_MODE_RDS_DISABLE = 0, HPI_TUNER_MODE_RDS_RDS = 1,
  HPI_TUNER_MODE_RDS_RBDS = 2
}


Tuner mode attribute values.

More...
enum  HPI_TUNER_STATUS_BITS {
  HPI_TUNER_VIDEO_COLOR_PRESENT = 0x0001, HPI_TUNER_VIDEO_IS_60HZ = 0x0020, HPI_TUNER_VIDEO_HORZ_SYNC_MISSING = 0x0040, HPI_TUNER_VIDEO_STATUS_VALID = 0x0100,
  HPI_TUNER_DIGITAL = 0x0200, HPI_TUNER_MULTIPROGRAM = 0x0400, HPI_TUNER_PLL_LOCKED = 0x1000, HPI_TUNER_FM_STEREO = 0x2000
}


Tuner Status Bits.

More...

Functions

hpi_err_t HPI_Tuner_QueryBand (const hpi_hsubsys_t *phSubSys, const hpi_handle_t hTuner, const uint32_t dwIndex, uint16_t *pwBand)
 Query tuner for supported bands.
hpi_err_t HPI_Tuner_SetBand (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint16_t wBand)
 Set the band that the tuner recieves.
hpi_err_t HPI_Tuner_GetBand (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint16_t *pwBand)
 Get the current tuner band.
hpi_err_t HPI_Tuner_QueryFrequency (const hpi_hsubsys_t *phSubSys, const hpi_handle_t hTuner, const uint32_t dwIndex, const uint16_t band, uint32_t *pdwFreq)
 Query tuner band for supported frequency range and steps Calling with dwIndex=0,1,2 returns frequency minimum, maximum and step respectively (in kHz), for the specified band.
hpi_err_t HPI_Tuner_SetFrequency (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t wFreqInkHz)
 Set the tuner frequency.
hpi_err_t HPI_Tuner_GetFrequency (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t *pwFreqInkHz)
 Get the current tuner frequency.
hpi_err_t HPI_Tuner_QueryGain (const hpi_hsubsys_t *phSubSys, const hpi_handle_t hTuner, const uint32_t dwIndex, uint16_t *pwGain)
 Query possible settings of tuner gain control Iterate dwIndex until an error is returned to get the list of gains supported by this tuner.
hpi_err_t HPI_Tuner_SetGain (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, short nGain)
 Set the RF attenuator gain of the tuner front end.
hpi_err_t HPI_Tuner_GetGain (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, short *pnGain)
 Get the current tuner gain.
hpi_err_t HPI_Tuner_GetRFLevel (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, short *pwLevel)
 Get the RF level of a tuner input in millibel microvolts.
hpi_err_t HPI_Tuner_GetRawRFLevel (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, short *pwLevel)
 Get the RF raw level of a tuner.
hpi_err_t HPI_Tuner_QueryDeemphasis (const hpi_hsubsys_t *phSubSys, const hpi_handle_t hTuner, const uint32_t dwIndex, const uint16_t band, uint32_t *pdwDeemphasis)
 Query tuner band for supported deemphasis settings.
hpi_err_t HPI_Tuner_SetDeemphasis (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t dwDeemphasis)
 Set the audio de-emphasis.
hpi_err_t HPI_Tuner_GetDeemphasis (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t *pdwDeemphasis)
 Get the audio de-emphasis setting.
hpi_err_t HPI_Tuner_QueryProgram (const hpi_hsubsys_t *phSubSys, const hpi_handle_t hTuner, uint32_t *pbitmapProgram)
 Get list of the HD Radio programs supported by this tuner as a bitfield.
hpi_err_t HPI_Tuner_SetProgram (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t dwProgram)
 Sets the tuner HD Radio program.
hpi_err_t HPI_Tuner_GetProgram (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t *pdwProgram)
 Gets the tuner HD Radio program.
hpi_err_t HPI_Tuner_GetHdRadioDspVersion (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pszDspVersion, const uint32_t dwStringSize)
 Gets the DSP firmware verison of an HD Radio tuner.
hpi_err_t HPI_Tuner_GetHdRadioSdkVersion (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pszSdkVersion, const uint32_t dwStringSize)
 Gets the SDK firmware verison of an HD Radio tuner.
hpi_err_t HPI_Tuner_GetFirmwareVersion (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pszFWVersion, const uint32_t dwStringSize)
 Gets the Firmware firmware verison of a HD or DAB Radio tuner.
hpi_err_t HPI_Tuner_GetStatus (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint16_t *pwStatusMask, uint16_t *pwStatus)
 Get the status of various Boolean attributes of a tuner control.
hpi_err_t HPI_Tuner_SetMode (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t nMode, uint32_t nValue)
 This function turns off the RSS (FM FR level reading) capability for the specified tuner.
hpi_err_t HPI_Tuner_GetMode (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t nMode, uint32_t *pnValue)
 Get the current tuner mode.
hpi_err_t HPI_Tuner_GetHdRadioSignalQuality (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t *pdwQuality)
 Get the digital signal quality from an HDRadio tuner.
hpi_err_t HPI_Tuner_GetHdRadioSignalBlend (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t *pdwBlend)
 Get the signal blend from an HDRadio tuner.
hpi_err_t HPI_Tuner_SetHdRadioSignalBlend (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, const uint32_t dwBlend)
 Set the signal blend from an HDRadio tuner.
hpi_err_t HPI_Tuner_SetDabAudioService (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, const uint32_t dwIndex)
 Sets the DAB audio service.
hpi_err_t HPI_Tuner_GetDabAudioServiceName (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pszAudioServiceName, const uint32_t nSize, const uint32_t nIndex)
 Gets the DAB audio service name.
hpi_err_t HPI_Tuner_GetDabAudioServiceCount (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, uint32_t *pdwIndex, uint32_t *pdwCount)
 Gets the # of DAB audio services.
hpi_err_t HPI_Tuner_GetDabMultiplexName (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pszMultiplexName, const uint32_t dwStringSize)
 Gets the DAB Multiplex name.
hpi_err_t HPI_Tuner_GetDabAudioInfo (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pszInfo, const uint32_t dwStringSize)
 Gets the DAB Audio info - bitrate, mode etc.
hpi_err_t HPI_Tuner_GetRDS (const hpi_hsubsys_t *phSubSys, hpi_handle_t hControl, char *pData)
 Get tuner RDS data.

Detailed Description

The tuner control sets the band and frequency of a tuner, and measures the RF level.


Enumeration Type Documentation

Tuner bands.

Used for HPI_Tuner_SetBand(),HPI_Tuner_GetBand()

Enumerator:
HPI_TUNER_BAND_AM

AM band.

HPI_TUNER_BAND_FM

FM band (mono)

HPI_TUNER_BAND_TV_NTSC_M

NTSC-M TV band.

HPI_TUNER_BAND_FM_STEREO

FM band (stereo)

HPI_TUNER_BAND_AUX

Auxiliary input.

HPI_TUNER_BAND_TV_PAL_BG

PAL-B/G TV band.

HPI_TUNER_BAND_TV_PAL_I

PAL-I TV band.

HPI_TUNER_BAND_TV_PAL_DK

PAL-D/K TV band.

HPI_TUNER_BAND_TV_SECAM_L

SECAM-L TV band.

HPI_TUNER_BAND_LAST

The index of the last tuner band.

Tuner mode attributes.

Used by HPI_Tuner_SetMode(), HPI_Tuner_GetMode()

Enumerator:
HPI_TUNER_MODE_RSS

Control RSS.

HPI_TUNER_MODE_RDS

Control RBDS/RDS.

Tuner mode attribute values.

Used by HPI_Tuner_SetMode(), HPI_Tuner_GetMode()

Enumerator:
HPI_TUNER_MODE_RSS_DISABLE

RSS disable.

HPI_TUNER_MODE_RSS_ENABLE

RSS enable.

HPI_TUNER_MODE_RDS_DISABLE

RDS - disabled.

HPI_TUNER_MODE_RDS_RDS

RDS - RDS mode.

HPI_TUNER_MODE_RDS_RBDS

RDS - RBDS mode.

Tuner Status Bits.

These bitfield values are returned by a call to HPI_Tuner_GetStatus(). Multiple fields are returned from a single call.

Enumerator:
HPI_TUNER_VIDEO_COLOR_PRESENT

Video color is present.

HPI_TUNER_VIDEO_IS_60HZ

60 Hz video detected.

HPI_TUNER_VIDEO_HORZ_SYNC_MISSING

Video HSYNC is missing.

HPI_TUNER_VIDEO_STATUS_VALID

Video status is valid.

HPI_TUNER_DIGITAL

Tuner reports digital programming.

HPI_TUNER_MULTIPROGRAM

Tuner reports multiple programs.

HPI_TUNER_PLL_LOCKED

The tuner's PLL is locked.

HPI_TUNER_FM_STEREO

Tuner reports back FM stereo.


Function Documentation

hpi_err_t HPI_Tuner_QueryBand ( const hpi_hsubsys_t *  phSubSys,
const hpi_handle_t  hTuner,
const uint32_t  dwIndex,
uint16_t *  pwBand
)

Query tuner for supported bands.

Iterate dwIndex until an error is returned to get the list of bands supported by this tuner

Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hTunerControl to query
dwIndexIndex for possible attribute values
pwBandband

References HPI_ControlQuery().

hpi_err_t HPI_Tuner_SetBand ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint16_t  wBand
)

Set the band that the tuner recieves.

Not all tuners support all bands, e.g. AM+FM or TV+FM.

Note:
That with the exception of HPI_TUNER_BAND_AUX, the tuner frequency must subsequently be set using HPI_Tuner_SetFrequency().
The tuner band may not change immediately. It may take up to 300ms to change. To determine when the band has changed, call HPI_Tuner_GetBand() until it returns the new band.
See also:
HPI_ControlQuery() for details on determining the bands supported by a particular Tuner Controls.
Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
wBandOne of the supported bands HPI_TUNER_BAND.
hpi_err_t HPI_Tuner_GetBand ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint16_t *  pwBand
)

Get the current tuner band.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pwBandCurrent tuner band - one of HPI_TUNER_BAND bands.
hpi_err_t HPI_Tuner_QueryFrequency ( const hpi_hsubsys_t *  phSubSys,
const hpi_handle_t  hTuner,
const uint32_t  dwIndex,
const uint16_t  band,
uint32_t *  pdwFreq
)

Query tuner band for supported frequency range and steps Calling with dwIndex=0,1,2 returns frequency minimum, maximum and step respectively (in kHz), for the specified band.

For example, to determine the frequency range of the AM band, do the following:

wErr= HPI_Tuner_QueryFrequency(phSS,hC, HPI_TUNER_FREQ, 0, HPI_TUNER_BAND_AM , pdwMinFreq);
wErr= HPI_Tuner_QueryFrequency(phSS,hC, HPI_TUNER_FREQ, 1, HPI_TUNER_BAND_AM , pdwMaxFreq);
wErr= HPI_Tuner_QueryFrequency(phSS,hC, HPI_TUNER_FREQ, 2, HPI_TUNER_BAND_AM , pdwFreqStep);
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hTunerControl to query
dwIndexIndex for possible attribute values
bandBand for which to query frequency range
pdwFreqfrequency min,max, step for given band

References HPI_ControlQuery().

hpi_err_t HPI_Tuner_SetFrequency ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t  wFreqInkHz
)

Set the tuner frequency.

Note:
See HPI_ControlQuery() to determine how to find the frequency supported by a particular tuner band.
The tuner frequency may not change immediately. It may take up to 300ms to change. To determine when the frequency has changed, call HPI_Tuner_GetFrequency() until it returns the new frequency.
Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlVestigial subsys handle (unused), may be set to NULL
wFreqInkHzTuner frequncy in kHz. Valid values depend on the tuner band setting.
hpi_err_t HPI_Tuner_GetFrequency ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t *  pwFreqInkHz
)

Get the current tuner frequency.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pwFreqInkHzReturned tuner frequency in kHz.
hpi_err_t HPI_Tuner_QueryGain ( const hpi_hsubsys_t *  phSubSys,
const hpi_handle_t  hTuner,
const uint32_t  dwIndex,
uint16_t *  pwGain
)

Query possible settings of tuner gain control Iterate dwIndex until an error is returned to get the list of gains supported by this tuner.

Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hTunerControl to query
dwIndexIndex for possible attribute values
pwGainTuner gain in millibels

References HPI_ControlQuery().

hpi_err_t HPI_Tuner_SetGain ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
short  nGain
)

Set the RF attenuator gain of the tuner front end.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
nGainValid values depend on the adapter type. For the ASI8700: 0dB or -20 x HPI_UNITS_PER_dB.
hpi_err_t HPI_Tuner_GetGain ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
short *  pnGain
)

Get the current tuner gain.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pnGainCurrent tuner gain in milliBels
hpi_err_t HPI_Tuner_GetRFLevel ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
short *  pwLevel
)

Get the RF level of a tuner input in millibel microvolts.

Divide the return value by HPI_UNITS_PER_dB to get the level in dBuV. This function only applies to certain bands on certain tuners.

Tuner Type Raw RF Level values Comments
MT4039 (TV/FM) 1..4 Only present in FM mode
MT1384 (AM</FM) 0..255 .
Si4703 (FM) Not supported .
Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pwLevelReturn level. The units are mBuV (mB micro volts). Range is +/- 100 dBuV
hpi_err_t HPI_Tuner_GetRawRFLevel ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
short *  pwLevel
)

Get the RF raw level of a tuner.

This is a "raw" value and it will depend on the type of tuner being accessed. This function only applies to certain bands on certain tuners. ASI87xx - Supports this function.
ASI89xx with ASI1711 tuner - Does not support this function. It will return HPI_ERROR_INVALID_CONTROL_ATTRIBUTE.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pwLevelThe units of this depend on the tuner type. This is the raw level reading that the tuner returns.
hpi_err_t HPI_Tuner_QueryDeemphasis ( const hpi_hsubsys_t *  phSubSys,
const hpi_handle_t  hTuner,
const uint32_t  dwIndex,
const uint16_t  band,
uint32_t *  pdwDeemphasis
)

Query tuner band for supported deemphasis settings.

Some tuner bands don't support deemphasis, and will return an empty list. Iterate dwIndex until an error is returned to get the list of deemphasis supported by this tuner band.

Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hTunerControl to query
dwIndexIndex for possible deemphasis values
bandBand for which to query deemphasis
pdwDeemphasisdeemphasis in us

References HPI_ControlQuery().

hpi_err_t HPI_Tuner_SetDeemphasis ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t  dwDeemphasis
)

Set the audio de-emphasis.

Not all tuners support de-emphasis. USA FM channels require de-emphasis of 75 usec, while Europe requires 50 usec. Some AM tuners may also have a deemphasis setting.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
dwDeemphasisPre-emphasis - 0, 50 or 75 (usec)
hpi_err_t HPI_Tuner_GetDeemphasis ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t *  pdwDeemphasis
)

Get the audio de-emphasis setting.

Not all tuners support de-emphasis.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pdwDeemphasisReturns pre-emphasis value of, 0, 50 or 75 (usec)
hpi_err_t HPI_Tuner_QueryProgram ( const hpi_hsubsys_t *  phSubSys,
const hpi_handle_t  hTuner,
uint32_t *  pbitmapProgram
)

Get list of the HD Radio programs supported by this tuner as a bitfield.

Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hTunerControl to query
pbitmapProgramTuner program bitfield. Each bit position, when set indicates an available HD Radio program. Bits 0..7 are valid

References HPI_ControlQuery().

hpi_err_t HPI_Tuner_SetProgram ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t  dwProgram
)

Sets the tuner HD Radio program.

HD Radio tuners and transmitting stations support multiple programs on a single tuner frequency. This API allows the user to set the program number on the currently tuned channel. See HPI_ControlQuery() documentation for how to find the list of supported programs.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
dwProgramProgram number to set. Range is 0-7.
hpi_err_t HPI_Tuner_GetProgram ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t *  pdwProgram
)

Gets the tuner HD Radio program.

HD Radio tuners and transmitting stations support multiple programs on a single tuner frequency. This API allows the user to get the current program number on the currently tuned channel.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pdwProgramReturns current program. Range is 0-7.
hpi_err_t HPI_Tuner_GetHdRadioDspVersion ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pszDspVersion,
const uint32_t  dwStringSize
)

Gets the DSP firmware verison of an HD Radio tuner.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pszDspVersionReturns current version of DSP software running on the tuner.
dwStringSizeLength on the string in bytes.
hpi_err_t HPI_Tuner_GetHdRadioSdkVersion ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pszSdkVersion,
const uint32_t  dwStringSize
)

Gets the SDK firmware verison of an HD Radio tuner.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pszSdkVersionReturns current version of SDK software running on the tuner.
dwStringSizeLength on the string in bytes.
hpi_err_t HPI_Tuner_GetFirmwareVersion ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pszFWVersion,
const uint32_t  dwStringSize
)

Gets the Firmware firmware verison of a HD or DAB Radio tuner.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pszFWVersionReturns current version of SDK software running on the tuner.
dwStringSizeLength on the string in bytes.
hpi_err_t HPI_Tuner_GetStatus ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint16_t *  pwStatusMask,
uint16_t *  pwStatus
)

Get the status of various Boolean attributes of a tuner control.

The pwStatusMask returns which bits in wStatus are valid, as not all tuners support all the status attributes.

Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
*pwStatusMaskA returned bitfield indicating which of the bits in pwStatus contain valid status information. See HPI_TUNER_STATUS_BITS for valid bit settings.
*pwStatusA returned bitfield containing current status flags. See HPI_TUNER_STATUS_BITS for bit meanings.
Returns:
0 on success, or one of the HPI_ERROR_CODES.
hpi_err_t HPI_Tuner_SetMode ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t  nMode,
uint32_t  nValue
)

This function turns off the RSS (FM FR level reading) capability for the specified tuner.

This only applies to certain bands on certain tuners.
ASI87xx - Supports nMode = HPI_TUNER_MODE_RSS
ASI89xx with ASI1721 tuner - Supports nMode = HPI_TUNER_MODE_RDS
Otherwise will return HPI_ERROR_INVALID_CONTROL_ATTRIBUTE.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
nModeOne of the HPI_TUNER_MODES
nValueOne of the HPI_TUNER_MODE_VALUES, according to the mode
hpi_err_t HPI_Tuner_GetMode ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t  nMode,
uint32_t *  pnValue
)

Get the current tuner mode.

Currently supports checking whether RSS is enabled or disabled. There are some dependancies across adapters for this function.
ASI87xx - Supports nMode = HPI_TUNER_MODE_RSS.
ASI89xx with ASI1711 tuner - RSS is always enabled. Supports nMode = HPI_TUNER_MODE_RDS
Otherwise will return HPI_ERROR_INVALID_CONTROL_ATTRIBUTE.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
nModeCurrently only supports HPI_TUNER_MODE_RSS.
pnValueReturned value is either HPI_TUNER_MODE_RSS_DISABLE or HPI_TUNER_MODE_RSS_ENABLE.
hpi_err_t HPI_Tuner_GetHdRadioSignalQuality ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t *  pdwQuality
)

Get the digital signal quality from an HDRadio tuner.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pdwQualityPointer to returned HDRadio signal quality.
hpi_err_t HPI_Tuner_GetHdRadioSignalBlend ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t *  pdwBlend
)

Get the signal blend from an HDRadio tuner.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pdwBlendPointer to returned HDRadio blend (0 = automatic, 1 = force analog only).
hpi_err_t HPI_Tuner_SetHdRadioSignalBlend ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
const uint32_t  dwBlend
)

Set the signal blend from an HDRadio tuner.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
dwBlendHDRadio blend (0 = automatic, 1 = force analog only).
hpi_err_t HPI_Tuner_SetDabAudioService ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
const uint32_t  dwIndex
)

Sets the DAB audio service.

Certain tuners and transmitting stations support multipe programs on a single tuner frequency. This API allows the user to set the program number on the currently tuned channel.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
dwIndexProgram number to set
hpi_err_t HPI_Tuner_GetDabAudioServiceName ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pszAudioServiceName,
const uint32_t  nSize,
const uint32_t  nIndex
)

Gets the DAB audio service name.

Certain tuners and transmitting stations support multiple services on a single tuner frequency. This API allows the user to get the service name of the specified service index.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pszAudioServiceNameReturns name of indexed programme (max length 16 chars) pointer to name of queried service
nSizeLength on the string in bytes.
nIndexindex of service
hpi_err_t HPI_Tuner_GetDabAudioServiceCount ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
uint32_t *  pdwIndex,
uint32_t *  pdwCount
)

Gets the # of DAB audio services.

Certain tuners and transmitting stations support multiple services on a single tuner frequency. This API allows the user to get the number of services on the currently tuned channel.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pdwIndexCurrent selected Index
pdwCount# of services on ensemble
hpi_err_t HPI_Tuner_GetDabMultiplexName ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pszMultiplexName,
const uint32_t  dwStringSize
)

Gets the DAB Multiplex name.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pszMultiplexNameReturns current version of SDK software running on the tuner.
dwStringSizeLength on the string in bytes.
hpi_err_t HPI_Tuner_GetDabAudioInfo ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pszInfo,
const uint32_t  dwStringSize
)

Gets the DAB Audio info - bitrate, mode etc.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pszInfoReturns current version of SDK software running on the tuner.
dwStringSizeLength on the string in bytes.
hpi_err_t HPI_Tuner_GetRDS ( const hpi_hsubsys_t *  phSubSys,
hpi_handle_t  hControl,
char *  pData
)

Get tuner RDS data.

Returns RDS data if there is any. ASI87xx - Does not support this function.
ASI89xx with ASI1711 tuner - Does support this function.

Returns:
0 on success, or one of the HPI_ERROR_CODES.
Return values:
HPI_ERROR_BUFFER_EMPTYif the RDS buffer is now empty.
Parameters:
phSubSysVestigial subsys handle (unused), may be set to NULL
hControlHandle to tuner control.
pDatapointer to 12 element array for returned RDS data
