ASIControl
This application is used to configure AudioScience audio
adapters and CobraNet devices, as well as route CobraNet audio.
An AudioScience driver and an AudioScience adapter or ASI2416
must be installed in order to open ASIControl and see controls.
ASIControl can be used to:

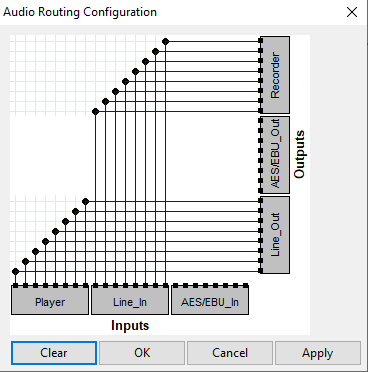

- Set routing and mixing of streams to physical inputs and
outputs
- Set up internal features of AudioScience's CobraNet products: the ASI2416 and the ASI6416
- Set up CobraNet routing between CobraNet devices on a network

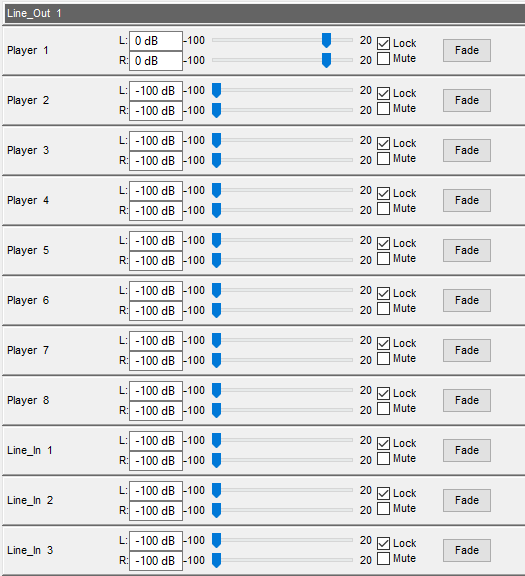

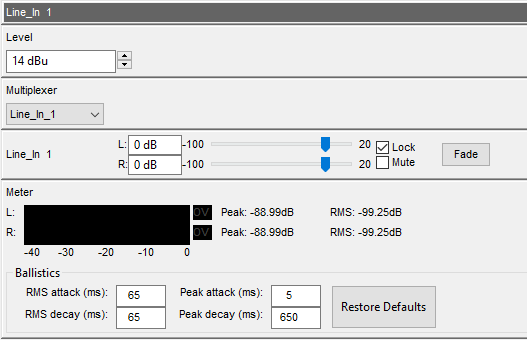

- Set input and output analog levels
- Set tuner parameters (ASI8700/8900 series)

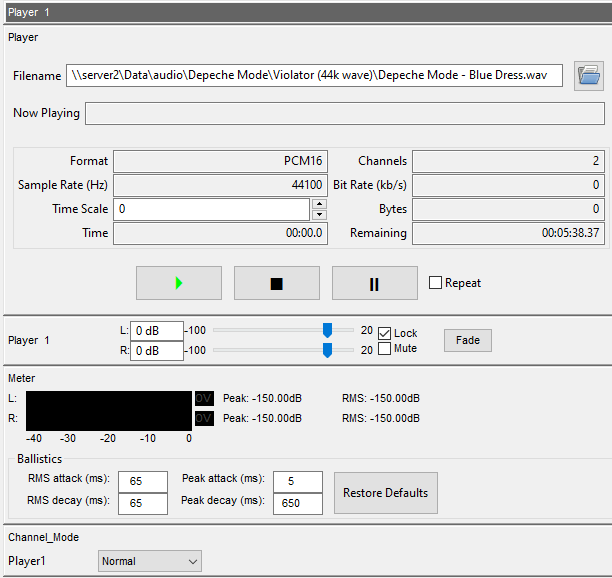

- Record and play audio streams to and from files
- User Manual
ASIControl is installed
automatically when you install any AudioScience driver.
It runs under Windows 2000, Server 2003, XP, Vista, and Vista
64bit
Note that with AudioScience driver version 3.10 and later, ASIControl is the recommended application to use.
If using a driver prior to version 3.10, use ASIControl with the WDM driver and ASIMixer with the WAVE driver.
ASITune
The application is used to set the channel of each tuner of an
ASI2108 or
ASI2118.
It can be used to:
- Individually tune each of the 8 tuners on an ASI2108
- Maintain a table that maps channel numbers to frequencies
It is supplied as a ZIP'd executable. No
installation is necessary, just unzip and run. It runs under
Windows 2000 and XP.
|
Description |
Date |
Version |
Size |
|
|
ASITune |
2006-11-02 |
1.03 |
366K |
Notes |
ASIMixer
Not recommended for new users - use ASIControl instead.
The application can be used to configure your audio adapter when
running the
WAVE driver versions 3.08.xx and lower. The WAVE driver and an AudioScience adapter must be
installed in order to open ASIMixer and see controls.
It can be used to:
- Set routing and mixing of streams to physical inputs and
outputs
- Set input and output analog levels
- Set tuner parameters (ASI8700 series)
- Record and play audio streams to and from files
- User Manual
It should not be used (and will not run) when
using the WDM driver. It is supplied as a ZIP'd executable. No
installation is necessary, just unzip and run. It runs under
Windows 95, 98, Me, NT, 2000, Server 2003, and XP.
Note if using driver version 3.10 or later, ASIControl is the recommended application to use.
|
Description |
Date |
Version |
Size |
|
|
ASIMixer |
2008-14-08 |
2.03.11 |
502K |
Notes
|
 If you have driver v2.97 or earlier installed, you must install
asihpi32.dll in order for ASIMixer v2.03.11
to work with driver v2.97 and earlier.
Running hpkw2k29701_asihpi32.exe will install asihpi32.dll.
ASIRoute
This application had been replaced by ASIControl.
|
