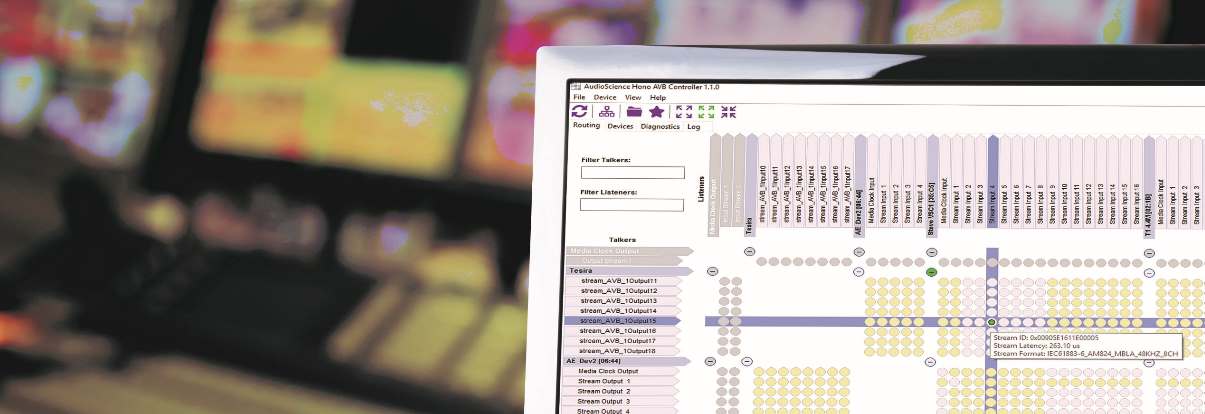

The Hono AVB Controller is a Graphical User Interface (GUI) application intended for use with AudioScience products combined with other 3rd party AVB devices. The controller provides configuration and routing of IEEE 1722 audio stream formats using the IEEE 1722.1 AVDECC protocol. It supports AudioScience AVB devices with IEEE 1722.1 dynamic stream mappings, allowing individual channels to be selected from incoming streams and routed to outgoing streams.
Hono AVB Controller is built upon the foundation of avdecc-lib, an open source AVB controller library. Avdecc-lib is part of the AVnu OpenAVB effort, an open source project for AVnu software, drivers and building blocks.
The Controller runs on Windows 7 and 10, 32/64bit and Apple macOS Sierra and High Sierra
- View all IEEE 1722.1 enabled AVB devices and their streams.
- Route streams on AVB devices and examine existing stream routes.
- Presets
- Save audio routing and device configuration presets
- Apply previously saved presets
- Edit presets offline and use for new device configurations
- View and adjust per-device settings, if implemented, including:
- Lock/unlock devices
- Device name
- Device Sample rate
- Media clock source
- Network information
- View and adjust per stream settings including:
- Stream name
- Media format
- Audio channel mappings
- IEEE 1722 Presentation time/stream latency
- View network status information including:
- IEEE 802.1AS clock synchronization grandmaster
- View device error and notification logs
- Runs on Windows 7 and 10, 32 and 64-bit platforms and Apple macOS Sierra and High Sierra
- 90 day full feature evaluation
| Documentation | Date |
|---|---|
| AudioScience Hono AVB Controller Quick Start guide | 06-30-16 |
| AudioScience Hono AVB Controller Datasheet | 03-30-20 |
| Downloads | Platform | Version | Notes | Date |
|---|---|---|---|---|
| Hono AVB Controller for Windows * | Windows | 1.2.0 | Release notes | 01-15-24 |
| Hono AVB Controller for macOS * | macOS | 1.1.54 | Release notes | 04-30-18 |
The Hono AVB Controller requires an activation key to install.
To obtain a 90 day evaluation trial key, click this link: Get a 90-day full-featured trial license and fill out the form. A key will be emailed to you.
The Hono AVB Controller is free to use on AVB networks that contain an AudioScience AVB device. With no AudioScience AVB products on the network, the Controller will operate in evaluation mode for 90 days with an evaluation key (click link above in "Evaluation key" section to get a key)
Users intending to use the AudioScience Hono AVB Controller beyond the 90 day evaluation period on a network with no AudioScience AVB devices will have to purchase a license. A single use license costs $295. For volume licensing please contact AudioScience sales. Note that we are unable to issue any refunds once a license has been authorized.
Click the "Buy Now" button below to purchase a permanent Activation Key to license your Hono AVB Controller
